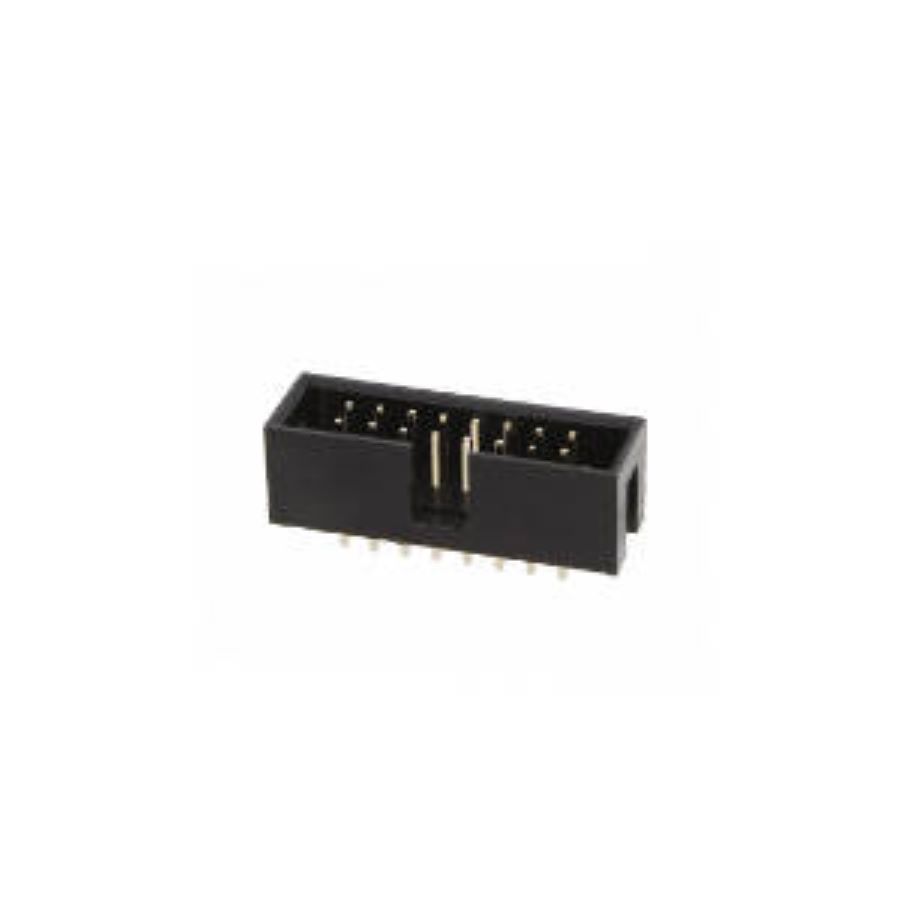

3020-16-0100-00
Manufacturer:
CNC Tech
Mfr.Part #:
3020-16-0100-00
Datasheet:
Description:
Connectors Through Hole Number of Rows:2 Contact Plating:Gold Pitch:2.54 mm Number of Positions:16
| Parameter | Value |
|---|---|
| Termination | Solder |
| RoHS | Compliant |
| Contact Plating | Gold |
| Pitch | 2.54 mm |
| Connector Type | Male Pin |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Fastening Type | Push-Pull |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Contact Material(Contact Finish) | Brass |
| Current Rating | 3 A |
| Voltage Rating | 250 V |
| Contact Style | Board to Cable/Wire |
| Contact Shape | Square |
| Insulation Material | Polyamide (PA6T), Nylon 6T |
| Packaging | Tray |
Stock: 8316
Distributors
pcbx
pcbxUnit Price$0.53792
Ext.Price$0.53792
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.53792 | $0.53792 |
| 10 | $0.45674 | $4.56740 |
| 25 | $0.43259 | $10.81475 |
| 50 | $0.40972 | $20.48600 |
| 100 | $0.38806 | $38.80600 |
| 300 | $0.36661 | $109.98300 |
| 500 | $0.34635 | $173.17500 |
| 1000 | $0.32808 | $328.08000 |
| 3000 | $0.31077 | $932.31000 |
| 5000 | $0.29438 | $1471.90000 |
| 10000 | $0.27885 | $2788.50000 |
